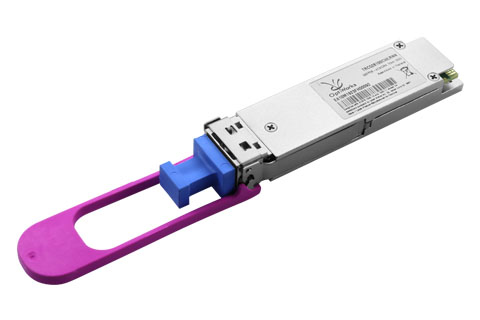

100G QSFP28 CWDM4 (10km)


The OptiWorks 100Gbps CWDM4 transceiver is designed for use in 100G Ethernet links for up to 10km reach over duplex single mode fiber. The transceiver is compliant to the QSFP28 MSA, CWDM4 MSA and IEEE 802.3bm requirements. Transceiver monitor, control and digital diagnostics are provided via I2C interface as defined in the QSFP28 MSA.
Hot pluggable QSFP28 form factor
Two-wire common management interface (SFF-8636 MSA)
CAUI-4 compliant Electrical interface (4 x 25.78125 Gbps)
Transmission distance up to 10km
Low power consumption: <3.5W
Commercial temperature operating up to 70℃
Duplex LC receptacle for Optical connectivity
Pull tab based latching mechanism (MSA Compliant Purple color)
Remote firmware upgrade capability using I2C interface
Provides capability to place CDRs in bypass mode for 40G operation
Programmable output de-emphasis and input CTLE
