This product applies 1310/1270nm DFB laser and 1270/1310 PIN receiver intending to transmit through single mode fiber for the link
length up to 10km. The connector is a single LC for bi-directional transmission and compliant with SFP28 and SFP+ pluggable. The
module operates with power supply of 3.3V and power consumption lower than 1.5W.
- HOME
- Products
- Transceivers
- 25G SFP28 BIDI(10km)
- 25G SFP28 BIDI(10km)

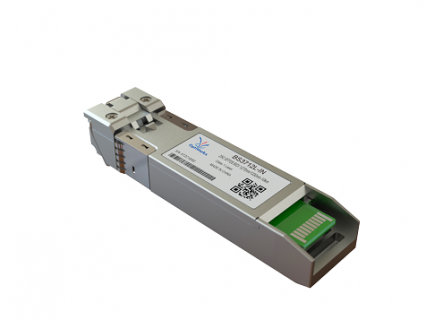

25G SFP28 BIDI(10km)
Description
- Features
- Up to 25.78125Gbps Data Links
- 1310/1270nm DFB laser transmitter and 1270/1310nm PIN receiver
- Up to 10km on SMF
- Hot-pluggable SFP footprint
- Single LC/UPC type pluggable optical interface, Bi-directional
- Metal enclosure, for lower EMI
- RoHS compliant
- Support Digital Diagnostic Monitor interface
- Single +3.3V power supply
- Case operating temperature
- Industrial: -40°C to +85°C
- Applications
- 25G BASE-LR Ethernet
- 5G Fronthaul Networks
