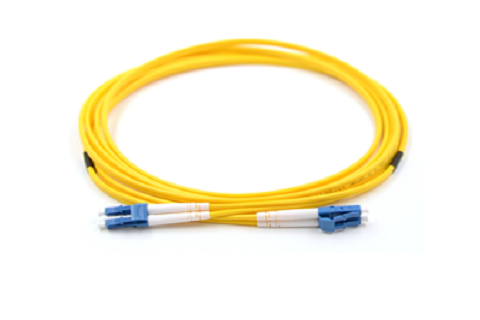

Optical patch cords

Features: High Quality Zirconia Ferrules; Variety Types to Meet all Needs; Long Distance and High Speed Transmissions; Easy installation and Variety Combination

Applications: Connection to CATV and Telecommunication Networks; Connection to FTTx and High Speed Transmissions; Connections in Computer Fiber Networks and Testing Equipment

Parameters	Unit	Specifications
Operating Wavelength	nm	980~1650
Insertion Loss @ fiber type	-	SM		MM
Insertion Loss in polish type	dB	UPC	APC	UPC		APC
Insertion Loss in polish type	dB	0.15~0.25	0.15~0.3	0.1~0.2		0.15~0.25
Return Loss	dB	≥ 50	≥ 60	≥ 30		≥ 35
WDL	dB	≤0.10			NA
TDL	dB	≤0.15
Minim Radius	mm	8
Jacket Type	-	Choice of: 900μm, 2mm, 3mm, 1.8mm, dupex…
