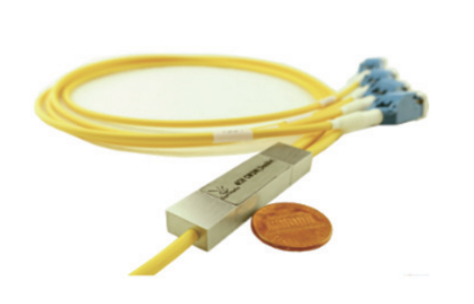

Ultra Compact Cable-Type WDM (Mux + DeMux)®

Description

Optiworks' ultra compact cable-type WDM (Mux + DeMux) is based on free space TFF technology, which has customized connectors with 2mm or 3mm Jacket. It has a excellent performance with wide range of operating temperatures. Optiworks could provide CWDM or DWDM Mux or Demux modules.

Features: Ultra-compact; Based on TFF technology; Ultra-low Insertion loss; Stable at wide range of operating temperatures

Applications: WDM, CATV, Spot Video and Data Center Networks.; Upgrade from CWDM/DWDM 10Gbps to 40Gbps or 25Gbps to 100Gbps. No separate WDM cassette is needed.; High speed multi-wavelength CWDM transceivers, line-card, portable testing equipment.

Parameter Specifications: CWDM Mux & DeMux in a single package

Parameters	Unit	1x4 Channels (1 common ports)	2x4 Channels (2 common ports)	1x8 Channels (1 common port)
Insertion Loss	dB	≤1.2		≤1.7
Ripple	dB	≤0.5
Polarization Dependent Loss	dB	≤0.3
Dimension	mm	21x12x6.5	50x12x6.5
Choice of Center Wavelengths	nm	1271 - 1611
Channel Spacing	nm	20
Channel Passband	nm	λc ± 6.5（Min.）
Isolation-Adjacent	dB	≥30
Isolation-Non-adjacent	dB	≥40
Return Loss	dB	≥45
Directivity	dB	≥50

Notes: The above specs exclude connector loss, each pair of connectors add 0.2dB

Parameter Specifications: DWDM Mux & DeMux in a single package

Parameters	Unit	2x4 Channels (2 common ports)	1x8 Channels (1 common port)
Insertion Loss	dB	≤1.5	≤2.0
Ripple	dB	≤0.5
Polarization Dependent Loss	dB	≤0.3
Dimension	mm	65x16x6.5
Choice of Center Wavelengths	nm	ITU channels
Channel Spacing	nm	100G:0.8 200G:1.6
Channel Passband	nm	100G: λc ± 0.11（Min.） 200G: λc ± 0.25（Min.）
Isolation-Adjacent	dB	≥30
Isolation-Non-adjacent	dB	≥40
Return Loss	dB	≥45
Directivity	dB	≥50

Parameter Specifications: LAN_WDM Mux & DeMux in a single package

Parameters	Unit	2x4 Channels	1x8 Channels
Channel Center Wavelengths	nm	1269.23, 1273.54, 1277.89, 1282.26, 1286.66, 1291.10 1295.56, 1300.05, 1304.58, 1309.14, 1313.73, 1318.35
Channel Passband	nm	λc ± 1.1（Min.）
Insertion Loss	dB	≤1.2	≤1.8
Ripple	B	≤0.50
Polarization Dependent Loss	dB	≤0.3
Isolation-Adjacent	dB	≥30
Isolation-Non-adjacent	dB	≥ 40
Directivity	dB	≥50
Return Loss	dB	≥45
Dimension	mm	50x12x6.5
