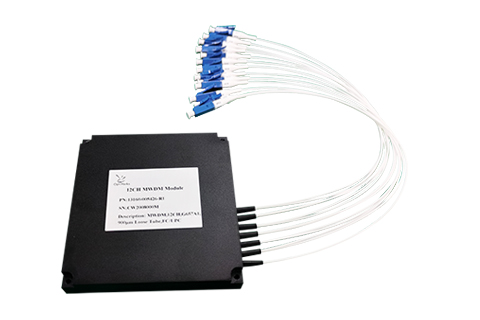

MWDM Modules

Description

The large-scale construction of 5G new infrastructure places higher demands on the fronthaul networks. Wavelength division multiplexing (WDM) technology is the preferred solution for 5G fronthaul networks. Among various WDM plans, MWDM is based on the 6 wavelengths of CWDM, shifted by 3.5nm left and right to expand to 12 waves, and is one of the cost-effective plans. Optiworks' MWDM module is based on our free-space platform which enables us to get rid of cascaded fiber fusion splices and thus to provide us with excellent performance and high reliability. In the meaning time, the device is so compact to be easily integrated into various modules and systems.

Features: TFF Free-space Technology; Ultra-Low Insertion Loss; High Isolation; Stable Operating Temperatures

Applications: FTTx , PON Optical Networks, 5G Networks.

Parameters	Unit	Specification
Operating Wavelength Range	nm	1261~ 1620
Central Wavelength: CW1-	nm	1267.5
Central Wavelength: CW1+	nm	1274.5
Central Wavelength: CW2-	nm	1287.5
Central Wavelength: CW2+	nm	1294.5
Central Wavelength: CW3-	nm	1307.5
Central Wavelength: CW3+	nm	1314.5
Central Wavelength: CW4-	nm	1327.5
Central Wavelength: CW4+	nm	1334.5
Central Wavelength: CW5-	nm	1347.5
Central Wavelength: CW5+	nm	1354.5
Central Wavelength: CW6-	nm	1367.5
Central Wavelength: CW6+	nm	1374.5
Chanel Insertion Loss @ CW1-	dB	≤ 2.2
Chanel Insertion Loss @ CW1+	dB	≤ 2.2
Chanel Insertion Loss @ CW2-	dB	≤ 2.2
Chanel Insertion Loss @ CW2+	dB	≤ 2.2
Chanel Insertion Loss @ CW3-	dB	≤ 2.2
Chanel Insertion Loss @ CW3+	dB	≤ 2.2
Chanel Insertion Loss @ CW4-	dB	≤ 2.2
Chanel Insertion Loss @ CW4+	dB	≤ 2.2
Chanel Insertion Loss @ CW5-	dB	≤ 1.5
Chanel Insertion Loss @ CW5+	dB	≤ 1.2
Chanel Insertion Loss @ CW6-	dB	≤ 1.6
Chanel Insertion Loss @ CW6+	dB	≤ 1.0
Channels Link Loss (COT & RT by pair) CW1~4	dB	≤ 4.4
Channels Link Loss (COT & RT by pair) CW5~6	dB	≤ 3.0
All Channels Passband	nm	λ+ 2.5
Up Grade Wavelength Range	nm	1384~1620
Ripple in Passband	dB	≤ 0.5
Adjacent Channel Isolation	dB	≥ 25
Non Adjacent Channel Isolation	dB	≥ 35
UPGD Port Isolation	dB	≥ 15
PDL (all ports)	dB	≤ 0.3
Return Loss (all ports)	dB	≥ 45
Directivity (all ports)	dB	≥ 50
Fiber Type	-	Corning Ultra Fiber (G657.A1)
Connector Type	-	Customers’ choice: SCA, SCU, LCA, LCU

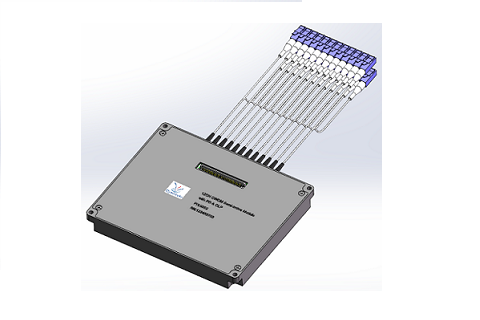

Module Package Type	-	Ultra-compact 30x30x6.5mm or 1RU LGX or HD density
Maximum Power handling	mW	500
Operating Temperature	℃	-40 ~ +85
Storage Temperature	℃	-40 ~ +85
Operation Humidity	-	5 to 95 % Relative Humidity
