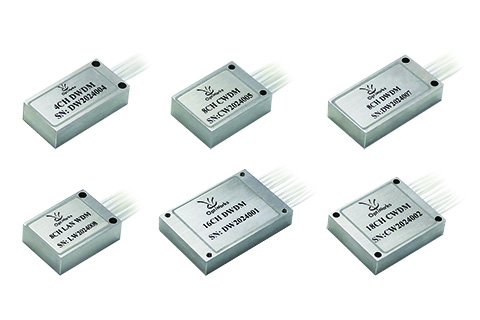

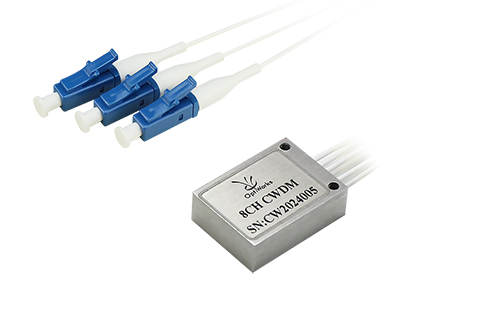

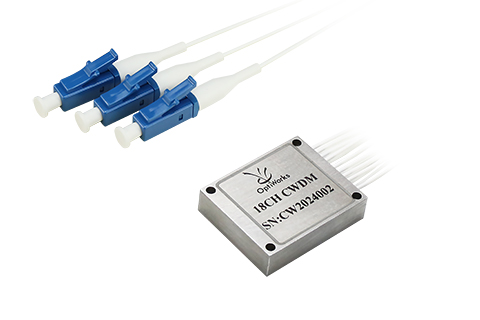

Ultra Compact CWDM

Features
Ultra-compact
Based on TFF technology
Ultra-low Insertion loss
Stable at wide range of operating temperatures
One side fiber feedthrough
Applications
CWDM networks, CATV networks
High speed multi-wavelength CWDM transceivers, line-card, portable testing equipment


Parameters

Unit

4 Channels

8 Channels

10 Channels

18 Channel

Insertion Loss

dB

≤1.2

≤1.6

≤1.8

≤2.2

Ripple

dB

≤0.5

≤0.5

≤0.5

≤0.5

Polarization Dependent Loss

dB

≤0.3

≤0.3

≤0.3

≤0.3

Dimension

mm

21x12x6.5

21x15.5x6.5

21x15.5x6.5

28x22.8x6.5

Channel Center Wavelengths

nm

1271 - 1611

Channel Spacing

nm

20

Channel Passband

nm

λc ± 6.5(Min.)

Isolation-Adjacent

dB

≥30

Isolation-Non-adjacent

dB

≥40

Return Loss

dB

≥45

Directivity

dB

≥50
