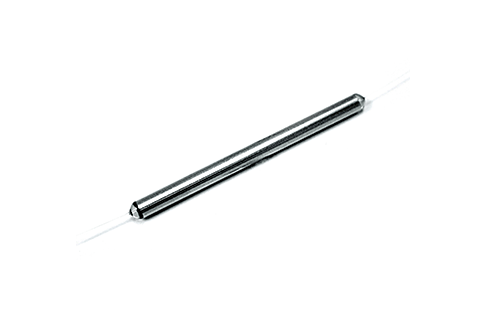

多模耦合器

特征
低附加损失
各种分光比
优异的环境稳定性
提供紧凑封装
Applications
接入网
有线电视系统和光纤传感器
FTTx
网络TAP监控


Parameters

Unit

Specifications

Type



Multimode Fused Couplers

Operating Wavelength

nm

850 or 1310 or 1550

Structure

-

1x2 or 2x2

Insertion Loss

50:50

dB

≤4.0 / 4.0

40:60

≤5.0 / 3.3

30:70

≤6.2 /2.5

20:80

≤8.0/1.9

10:90

≤11.00/1.5

PDL

dB

≤0.20

Return Loss

dB

≥40

Directivity

dB

≥40

Fiber Length

m

1.0

Fiber Type

-

62.5/125 OM1 or 50/125 OM3 or OM4;

Fiber Diameter

-

250μm bare fiber

900μm loose tube

2mm or 3mm jacket

Package

mm

3x54

3x60

90x20x9.5

Notes: The above specs exclude connector loss; each pair of connectors adds 0.2dB
